8.5.1 DAOS in the Replicator benchmarks, a slight disappointment

Darren Duke  August 30 2009 09:55:15 PM
With everyone and their dog blogging about XPages in 8.5.1 (and rightly so), I figured I'd go the "path less traveled". Domino 8.5.1 adds DAOS to the replicator task. In essence, this little piece of wondrous engineering should dramatically decrease bandwidth used during replication between DAOS enabled servers.

It does this by the allowing the two servers taking part in replication to communicate that a given NLO attachment either already exists in the target server DAOS repository or that it does not. If the NLO already exists in the target server DAOS repository, then that attachment is not sent. This means only "net new" attachments (ones where no NLO exist) are sent to a target server during replication. As many users and mail files have the same attachments (which is why we see such amazing savings on disk storage on DAOS) the same many, many copies of the same attachments now only ever replicate once between two discreet servers.

Think of it this way:

Source server : I am about to send you DAOS attachment abc.nlo (size 2.4MB)
Target server : I don't have this, send it over
Source server : Sending 2.4MB

Or

Source server : I am about to send you DAOS attachment abc.nlo (size 2.4MB)
Target server : I already have this NLO file. Do not send
Source server : Not sending 2.4MB

With one simple example you can see how powerful this will be once you scale it to entire Domino servers. As the attachment count goes up, and reply to all with history is hit, the bandwidth savings can be phenomenal. "Enough talk", you say, "show me the money".

Disclaimer : as 8.5.1 is only in beta right now, these results could significantly change (or IBM could change functionality) in the production release of ND 8.5.1.

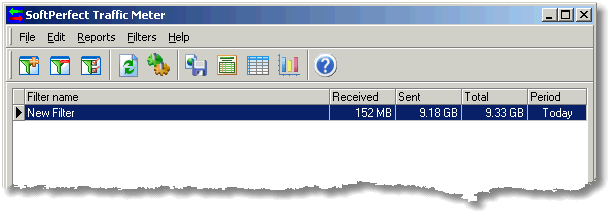

Figure 1. Bandwidth used without DAOS enabled during replication
Image:8.5.1 DAOS in the Replicator benchmarks, a slight disappointment
In figure 1, we move 9.2GB of mail and archive files as new replica's via AdminP to a new server. Without DAOS enabled we see a total of 9.33GB of bandwidth used.

So what happens when we enable DAOS?

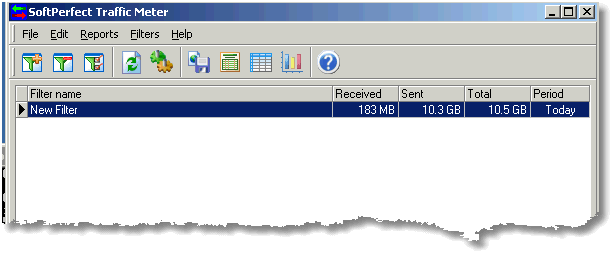

Figure 2. Bandwidth used with DAOS enabled during replication
Image:8.5.1 DAOS in the Replicator benchmarks, a slight disappointment

In figure 2, we see no difference? Really? WTF? I was expecting to see a 40-60% percent decrease.

Note, the extra GB or so is just normal replication after the initial build took place, so no, it really isn't larger.

This result threw me for a loop until I thought through the process. See, to get the mail files over to the server, we used AdminP and created replica stubs on the the new target server. Then replication took place. My guess here is that DAOS only works once the replicas have been fully initialized. This seems to be proved by figure 3 which shows a handful (in this case 38) attachments we "optimized". These were in fact "optimized" after the replicas were initialized. I was expecting so see 15,000+ as the number here. Bummer. Maybe in 8.5.2 :)

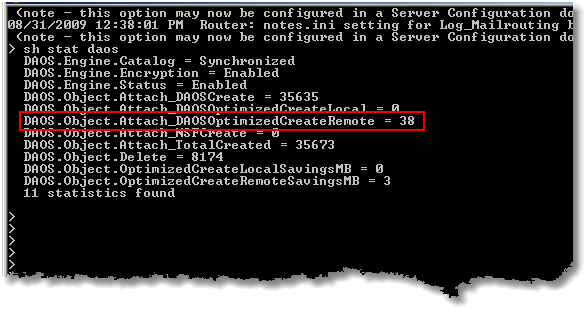

Figure 3. DAOS "optimized" attachment count.
Image:8.5.1 DAOS in the Replicator benchmarks, a slight disappointment
Bottom line, DAOS in the replicator works the way I described it above (2.5MB example), just the replicas have to be fully initialized and created first. The way I "thought" it should work, with replica stubs would be very useful too.
Comments

Gravatar Image  1Mike Wissinger  8/31/2009 2:45:58 PM  Test Scenario

Was adminp able to do an accelerated create replica on the new server? If so, there may be a confounding variable in your experiment. As I recall, accelerated create replica results in an OS-level xCopy for the initial replication job (which isn't able to use replication formulas and ACL restrictions, much less DAOS). You may want to manually create an empty replication stub on the remote server and see if the numbers work out better. If that works out better, we'll then need to see if we can get IBM to change the accelerated create replica behavior for DAOS enabled servers (since the xCopy thing was introduced in R6 to improve performance).

Gravatar Image  2Michael  9/1/2009 7:15:18 AM  Replicator and DAOS

I am under the impression that the accelerated replica uses the cluster replicator, as this cool tool can be used across non clustered servers.

What about the router? Would performances not been seen here? or did I miss something already?

MdH

Gravatar Image  3Jon Champlin  9/1/2009 8:06:08 AM  Adminp?

Was the initial replica created with the adminp accelerated replication? If so, that does not take advantage of DAOS exploitation as it is basically an OS level copy not looking for Domino specific details.

Gravatar Image  4Jon Champlin  9/1/2009 8:41:23 AM  Actually

If the source database is DAOS-enabled and the destination server is DAOS-enabled and you attempt to do an accelerated replica it should fall back to doing a normal replication so you can take advantage of exploitation. Was the source database and destination server DAOS enabled when you created the replica?

Did the objects already exist in the DAOS store on the destination database when you created the new replica?

Was the server time of the two servers within 5 minutes of each other?

Gravatar Image  5Darren Duke  9/1/2009 12:00:42 PM  New test required then

@all, so adminp looks like the culprit. Maybe I'll try to stub from the client, then use server to server.

@2, I'm not sure about the router yet. The client >= 8.5.1 does have this capability, just not sure about the server yet.

@3, yes. So that explains it. Sucks, but I guess that is the way it is.

@4, yes, kind of and yes. For "kind of" I mean that we did 10GB of mail, there are some duplicate attachments in all of them. Again, AdminP is the issue.

Time to retest using client initiated stubs.

Gravatar Image  6Jon Champlin  9/1/2009 12:12:21 PM  Adminp

Well, adminp should see the source DB is DAOS enabled and the destination server is DAOS enabled and not use the accelerated replication.

Gravatar Image  7Darren Duke  9/1/2009 12:26:54 PM  @6, then something is wrong

Both sides were DAOS enabled. Now, maybe I'm just over thinking this, but....

I figured if both are DAOS enabled then during initial replication the source server would not send any NLOs that exist on the target. Given the bandwidth and DAOS stats above this does not look to be true.

Both servers are 8.5.1 CD8.

Gravatar Image  8Jon Champlin  9/1/2009 1:16:50 PM  right

Did you use adminp accelerated replication to create the replicas or did you create stubs via the client?

Did the same behavior occur when creating the stubs via the client and then letting replication happen?

Also, there were already databases on the destination server that contained objects in DAOS that were also replicated over during the initial replication of the new replicas?

Gravatar Image  9Darren Duke  9/1/2009 2:21:25 PM  Answers

@8 - 1, adminp

-2, have not yet tried the client to do the stubbing.

-3, there were, but only from mail files created earlier in the process. I guess I'm trying to say that mail file "A" was replicated, all attachments added to DAOS, mail file "B" was replicated and had some of the same attachments. However, both "A" and "B" were stubbed at the same time via AdminP. Hence, my feeling that AdminP stubbing is the issue.

It will be a day or two before I can fully test some more.

Gravatar Image  10Jon Champlin  9/2/2009 8:27:13 PM  some more questions

So when mail file "B" was replicated over it didn't take advantage of any of the objects that had already been replicated over by mail file "A"?

Did the replication happen after mail file "A" was completely replicated or did they happen at the same time?

We've done some testing here and it seems to work even when the stubs are created by adminp.

Gravatar Image  11Darren Duke  9/3/2009 8:07:11 PM  @10, I don’t think it did

No it didn't (at least based on the bandwidth utilization I saw).

"A" was completely replicated before "B" began.

I'm pretty sure the bandwidth (and the DAOS count of 38 items) is due to the "x-copy" type copying that takes place when AdminP stubs the files out.

So two things look apparent:

1) AdminP stubbing of replicas will not give any wire bandwidth savings when initially creating replicas on other servers.

2) SCR (streaming cluster replication) does NOT save any bandwidth either.

Gravatar Image  12Jon Champlin  9/4/2009 9:00:16 AM  Adminp stubs

What we've seen here is that if the source DB is DAOS-enabled and the destination server is DAOS aware the adminp "x-copy" shouldn't happen -- it should fall back to creating the stub through normal replication. Have you verified if client created stubs work differently?

SCR only saves the disk i/o on the destiation side.

Gravatar Image  13Darren Duke  9/4/2009 10:34:03 AM  Ulrich to the rescue

Over on his blog, Ulrich may have found the solution. See here, http://www.eknori.de/2009-09-04/daos-domino-8-5-1-and-replication/

Gravatar Image  14Darren Duke  9/4/2009 10:38:38 AM  8.5.1 DAOS in the Replicator benchmarks, a slight disappointment

@11, I will run another test once back in the office (doing a 8.5 upgrade this weekend). In your lab tests what does the "sh daos stats" show? Does it show 0 after the initial replication and initialization has completed or does it show the number of NLO objects that were not sent (ie, on the ticket was sent)? If you monitor the bandwidth until successful initialization takes place between the servers do you see a dramatic decrease in bandwidth utilization like I had expected? Thanks to Ulrich's blog post, I think the full text options may have croaked the accelerated replica request and forced it back to "non-accelerated". That could explain the differences from what you are seeing and what I posted above.

As this is all starting to make some sense, I'll do some more testing and do another post next week.

Also, thanks for the clarificaiton on the cluster replicator. I had wondered about that since I first saw it on Ed's slides.

Gravatar Image  15Jon Champlin  9/4/2009 4:28:04 PM  notes.ini

Did you have the notes.ini ADMINP_ACCELERATED_REPLICA_OVERRIDES set during creation of the stubs?

You can email me directly so we can get this figured out more quickly.

Gravatar Image  16Babar  11/4/2009 2:12:01 AM  DAOS with blackberry

Hi Darren, I am wondering on the DAOS functionality with Blackberry? How it will handle the attachments for blackberry users? any idea?

Would really appreciate your reply.

Gravatar Image  17Darren Duke  11/4/2009 9:41:11 AM  8.5.1 DAOS in the Replicator benchmarks, a slight disappointment

@16, provided your BES server supports 8.5.x DAOS is not an issue for BES servers. Specifically DAOS is transparent to all other Domino tasks and the Notes client, and indeed other Domino servers.

Now, what I haven't tested is a BES installed on a server which is also the mail server with DAOS'd mail files. This is not a supported by RIM anyway, but I think it should work OK, but test it first.

Gravatar Image  18Padmanaban.P.N.  6/5/2010 4:50:29 AM  DAOS attachments are not able to view in Blackberry.

Hi,

We enabled the DAOS in Domino R8.5.1. But we unable to view the attachment in Blackberry instrument. We need to know how to enable it in the BES. Any ideas kindly share with me.

Thanks,

Paddy.

Gravatar Image  19Darren Duke  6/14/2010 8:24:51 AM  DAOS attachments are not able to view in Blackberry.

What versions BES and Domino is BES running? Never seen an issue on any BES with DAOS.

Gravatar Image  20Brian Connelly  8/11/2010 2:43:54 PM  DAOS and BES

Had the same problem with attachments not showing up in the device. a reboot of the BES server did the trick.
