DA and AD's....how could this not get confusing?
Over the past few days I've been working to figure out why 9.0.1 FP4 can no longer connect to Active Directory when using a SSL connection for the LDAP connection from Domino. Specifically this is AD 2012 but I would guess the same issues hit 2012 R2. Not sure about 2008. Like this:
Anyway, what worked in 9.0.1 FP3 no longer worked after an upgrade to 9.0.1 FP4. After much testing it appears that Windows 2012 servers really doesn't like TLS1.2 when using Domino. A quick Google will show you than OpenSSL seems to have the same issue so it would seem this is a Windows Server issue as opposed to a Domino issue but that is pure speculation on my part.
Here's the testing I did to figure this out. I knew AD SSL was working thanks the LDP.exe tool on my PC. The connection to the domain controller over port 636 (the SSL) port came back fine.
On a server not running 9.0.1 FP3 (not FP4) I turned up SSL logging using these notes.ini settings:
DEBUG_SSL_HANDSHAKE=1
DEBUG_SSL_CIPHERS=1
DEBUG_SSL_ALL=1
I then fired up LDAPSearch.exe on the server, piped the query out to a text file and ran this query:
ldapsearch -h dc2-pw.blah.local -p 636 -D "cn=darren duke,cn=users,dc=blah,dc=local" -w password -b "dc=blah,dc=local" "objectClass=*"
On the working server (FP3) this was returned in the text file:
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSLProcessServerHello> Server chose SSL/TLS version TLS1.0 (0x0301)
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSLAdvanceHandshake> A certificate has been requested
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSLAdvanceHandshake> An X509 certificate has been requested
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSLAdvanceHandshake> Empty Server DN List
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSLEncodeCertificate> Generating a certificate message with 0 certs
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSL_Handshake> After handshake state= 13 Status= -5000
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSL_Handshake> Exit Status = -5000
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM int_MapSSLError> Mapping SSL error -5000 to 4176 [SSLHandshakeNoDone]
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSL_Handshake> Enter
[1BD44:0002-1C534] 07/13/2015 04:39:14.66 PM SSL_Handshake> Current Cipher 0x002F (RSA_WITH_AES_128_CBC_SHA)
OK so FP3 is using TLS1.0 and the RSA_WITH_AES_128_CBC_SHA (the 2F) cipher. Lets see what the same query from a FP4 server does:
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLEncodeClientHello> We offered SSL/TLS version TLS1.2 (0x0303)
...snip...
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 0 Available cipherspec: 0x009F
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 1 Available cipherspec: 0x009E
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 2 Available cipherspec: 0x006B
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 3 Available cipherspec: 0x0039
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 4 Available cipherspec: 0x0067
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 5 Available cipherspec: 0x009D
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 6 Available cipherspec: 0x009C
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 7 Available cipherspec: 0x003D
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 8 Available cipherspec: 0x0035
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 9 Available cipherspec: 0x003C
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 10 Available cipherspec: 0x002F
[0824:0002-0C34] 07/15/2015 07:42:56.36 AM SSLInitContext> 11 Available cipherspec: 0x0033
... snip ....
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM SSLSendAlert> Sending an alert of 0x0 (close_notify) level 0x2 (fatal)
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM SSL_Handshake> Changing SSL status from -6989 to -5000 to flush write queue
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM SSL_Handshake> After handshake state= 2 Status= -5000
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM SSL_Handshake> Exit Status = -5000
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM int_MapSSLError> Mapping SSL error -5000 to 4176 [SSLHandshakeNoDone]
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM SSL_Handshake> Enter
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM SSL_Handshake> Current Cipher 0x0000 (Unknown Cipher)
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM S_Write> Enter len = 7
[0824:0002-0C34] 07/15/2015 07:42:56.38 AM SSL_Xmt> 00000000: 15 03 03 00 02 02 00
.... snip ....
ldap_bind_s( dn=cn=darren duke,cn=users,dc=blah,dc=local, pw=password, method=128 ) failed, error
: Not an LDAP errno 7289
SSL invalid certificate, may need to cross-certify.
Hum. So the 2F cipher is there but this is a TLS1.2 transaction. Also that last line threw me for a curve. Why would FP3 not care about a cross cert by FP4 does? I even added the root signing certificate from AD to Domino as an Internet Cross Certificate. No joy.
Next swing at this, I wondered if it was a TLS1.2 issue so I Googled the shit out of changing the ciphers in AD to test it. Argh, registry hacks,,,,more searching and I found this fantastic free tool to view/adjust Windows ciphers used by Schannel https://www.nartac.com/Products/IISCrypto/Download.

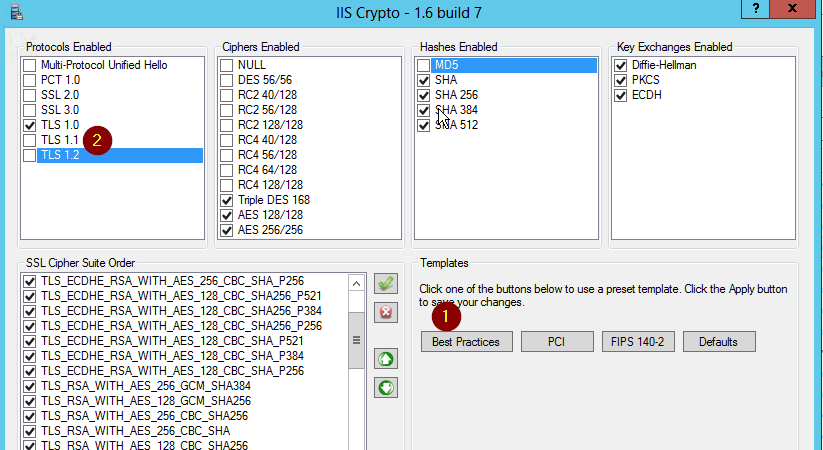

With this tool I adjusted the domain controller to the following (basically I selected "Best Practice, then disabled TLS1.1 and TLS1.2......oh, Domino does not like seeing TLS1.1 from the DC either):
Once I did that and rebooted the DC, voila, Domino 9.0.1 FP4 could now connect.
Again, I am not 100% certain here but this smells like a AD issue, but it is Domino that doesn't work. A Sonicwall VPN using LDAPS to the AD controller worked fine with TLS1.2, so maybe it is Domino. I did PMR this and after I'd already figured out my work around support suggested I add this to Domino server notes.ini:
SSL_DISABLE_TLS_12=1
So that is basically the same workaround but from the Domino side. This suggests one side or the other is either not handshaking correctly or cannot decide on a cipher when using TLS1.2.
It sure would be nice to have TLS1.2 everywhere. Some day perhaps. Someday.
.
